5-horsepower outboard machine
5-horsepower outboard machine: the application scenario is marine motorcycles, marine speedboats and water-cooled engine parts. Due to the strong corrosivity of seawater, the coating has strong corrosion resistance.
20CrMnTi
Material: 20CrMnTi
Surface treatment: Carburizing
Hardened layer: 0.3~05mm
Hardness: Carburized HRA78~83, internal HRC25~45
SUS304 mirror stainless steel
The cover of this product is made of SUS304 mirror stainless steel, and the appearance is exquisite. The product has passed Honda's strict SPEC performance test, and has excellent static pressure sealing, air permeability, operation detachment and high and low temperature resistance. Powered by HONDA
Baosteel DC01
The product is made of Baosteel DC01 cold rolled sheet by fine blanking, with low cost and high precision.
Baosteel SECCN5
The parts of this product are assembled by Baosteel SECCN5 galvanized steel sheet after stamping and forming, and are generally used in GX160 gasoline engine in the market.
Variable frequency generator series
Variable frequency generator series: The characteristic product is that the product is a processing-free product with a flatness requirement of 0.15mm. In order to meet the lightweight, the product wall thickness is 1.5mm.
Variable frequency generator series 2
Motorcycle decoration series: the main function is decoration, applied to motorcycle dashboard support.
Variable frequency generator series 3
Automobile decoration series: the main function is decoration, which is applied to the decoration of car calipers. The product is required to have a beautiful appearance, and the surface coating needs to be resistant to cold water impact, high temperature and low temperature impact, etc.
Gearbox body
Gearbox body: the main features of long core-pulling, casting difficult, applied to agricultural land machine, the use of poor environment, higher requirements.
Large outboard engine parts
Large outboard engine parts: the application scenario is sea speedboat. Because seawater has strong corrosivity and coating has strong corrosion resistance, it is an internal combustion eight-cylinder engine part with higher precision than automobile engine parts.
Speed controller assembly series
Speed controller assembly series: this product is made of Baosteel ST12 cold-rolled steel plate, which is assembled after stamping and electroplating. It is commonly used in high-power double-cylinder gasoline engines in the market.
Motorcycle engine box
Motorcycle engine box: fixed crankshaft, camshaft, speed control gear shaft hole and other transmission parts; it contains oil, making transmission smooth; it is applied to motorcycle engine, and is the core component of motorcycle engine.
Motorcycle decoration series
Motorcycle decoration series: the main function is decoration, applied to motorcycle engine decoration.
Motorcycle decoration series 2
Motorcycle decoration series: the main function is decoration, applied to motorcycle frame decoration.
Automobile air conditioner series
Automobile air conditioner series: This series of products are produced by ultra-high speed and vacuum casting. It is used in compressor for automobile air conditioner.
Automobile suspension bracket
Automobile suspension bracket: The main function is to connect the engine and the body, reduce the vibration transmission between the engine and the body, and limit the displacement of the engine in the engine compartment. The strength and extensibility of the product are higher than other products.
Automobile decoration series 2
Automobile decoration series
Water pump series
Water pump series: the pump body is fixed with the pump cover and turbine, so that the water in the pump cavity is sucked by the water inlet, rotated by the turbine and output from the water outlet.
A core component of a general gasoline engine
A core component of a general gasoline engine 2
Cylinder block is the core component of general gasoline engine, which affects the movement of crankshaft, camshaft and piston, and is the key component of engine power and emission ; It can be equipped with high-power generators, pumps, etc.
A core component of a general gasoline engine 3
Cylinder end is the core component of general gasoline engine, and it is an important component that affects engine power and emission.
The box cover is a fixed crankshaft and camshaft.
The box cover is used for fixing the crankshaft and the camshaft, and simultaneously containing the engine oil, so that the crankshaft and the camshaft can be well lubricated.

Case presentation

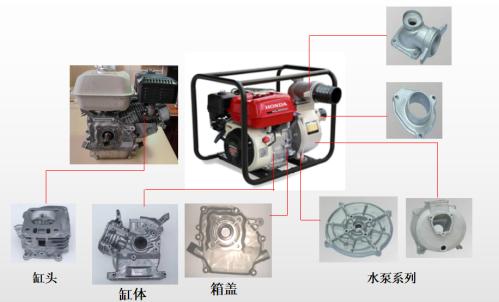

There are mainly 8 products for the medium-sized box of the general horizontal axis engine, and there are 35 states in total. Among them, the most representative GP series, compared with the same type, has a durability of 500 hours, with no power attenuation, stable oil temperature, low fuel consumption, and emission requirements suitable for European standards, American standards, and national standards.

3kVA variable frequency hand-held generator components achieve lightweight goal without affecting the use performance.

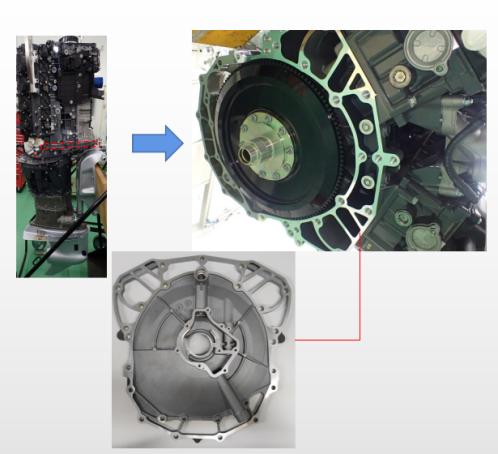

This product is a key component of large outboard engine. It is located in the center of eight-cylinder engine and is the heart of the whole engine. It plays the role of connecting the preceding with the following.

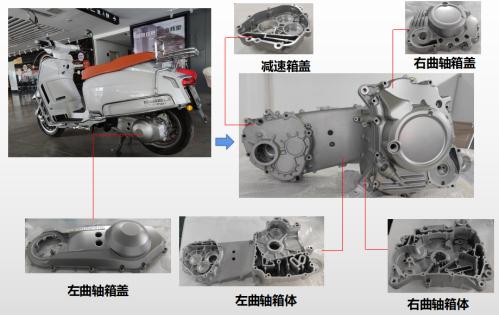

Motorcycle engine series: its role is to provide power for the motorcycle device; it is the heart of the motorcycle, determining the motorcycle's power, economical efficiency, stability and environmental protection.

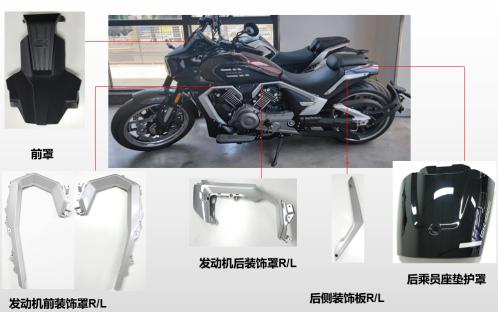

Motorcycle decoration series: This series of products has changed from traditional materials to aluminum alloy products, which has achieved lightweight and beautification without affecting performance and strength.
